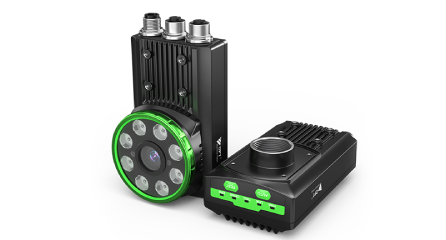

Smart Camera

Versatile I/O interfaces ensure seamless device communication.
Built-in machine learning engine for OCR and complex analysis.
Durable industrial-grade housing withstands extreme conditions.
Supports TCP, UDP, Serial, Ethernet/IP, Modbus, FTP, and more.
Compact all-in-one design saves space and simplifies installation.
Intuitive drag-and-drop workflow requires no programming skills.
HDMI and USB interfaces enable real-time debugging for easy setup.
Advanced image sensor delivers sharp images, even in low-light conditions.
Supports 2.3M to 20M pixels, covering both basic and high-precision applications.
Integrated vision algorithms support positioning, measurement, and defect detection.
Intelligent zoned lighting adapts to diverse environments, with optional polarizers, diffusers, and color filters.

Category	Functions
Image	Camera Setting, Image Acquisition, Image Import, Image Cache, Image Export, Auto Calibration, Light Calibration, Coordinate Transformation
Enhance	Preprocess, Filter, Tile Images, Image Operation, Threshold, Resize, Channel Extraction, Morphology, Brightness Contrast Gamma, Rotation, Mirror, LUT, Crop Image, Equalize Histogram
Location	Find Point, Find Line, Find Circle, Grey Match, Feature Match, Contour Match, ROI Creation, Hough Circles, Hough Lines, Corner Detection, Pick&Place
Measure Feature	Caliper, Pitch Measurement, Geometry Relationship, Auto Focus, Color Measurement, Intensity Measurement, 3D Laser Triangulation, Focus 3D
Surface Inspection And Blob Analysis	Blob Analysis, Scratch Detection, Contours Extraction, Contours Processing, Variation Model, Profile Tolerance, Contour Contrast, Data Conversion, Edge Defect Detection
Recognition	OCR, Barcode Reading, 2D Code Reading, Classifier
Communi-cation	TCP/IP, Serial Port, GPIO, Modbus, HID, Keyboard Event
Control	Logic Calculator, Array Converter, Script or, Variable Assignment, Overlay, Delay, Plugin Library Popup Dialog, Export to CSV, Variable Logs, Database Operator, Exit Program

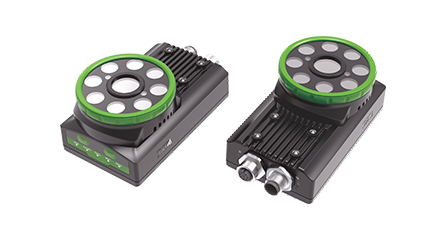

Smart Code Reader

Multiple interfaces (Ethernet, Serial, I/O) ensure smooth communication.
One-click auto-tuning simplifies setup configuration and installation.
A high-brightness LED aimer ensures accurate targeting and faster debugging.
High-resolution, high-sensitivity image sensor, designed to meet the requirements of precision industrial scenarios.
Supports TCP, UDP, Serial, Ethernet/IP, Modbus, Profinet, FTP, HTTP, MC, Fins, and more transmission protocols easy system integration.
Equipped with a high-performance multi-core processor for fast decoding, easily handling high-speed production lines and complex industrial environments.
Built-in Machine Learning Code Reading Algorithm – Efficiently reads all types of barcodes and QR codes, even when dirty, damaged, or low-contrast, with precise recognition of curved and high-density DPM codes.
Durable industrial-grade casing design, capable of withstanding high temperatures, low temperatures, dust, moisture, and other harsh environments, meeting the demanding requirements of industrial applications.

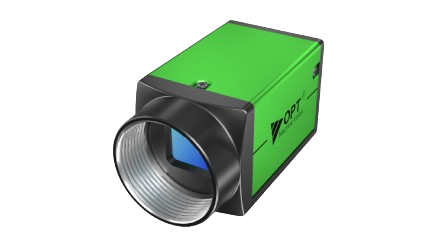

Support multple modes such as software trigger/hardware trigger/free run.
Supports ISP functions like sharpness,noise reduction, gamma, correction, finding table, black level correction, brightness and contrast.
Support multiple image data format output,ROL,Binning,mirror image,etc.
Compatible with GigE Vision V2.0 protocol,USB3 Vision protocol,Camera Link protocol and GenICam standard
